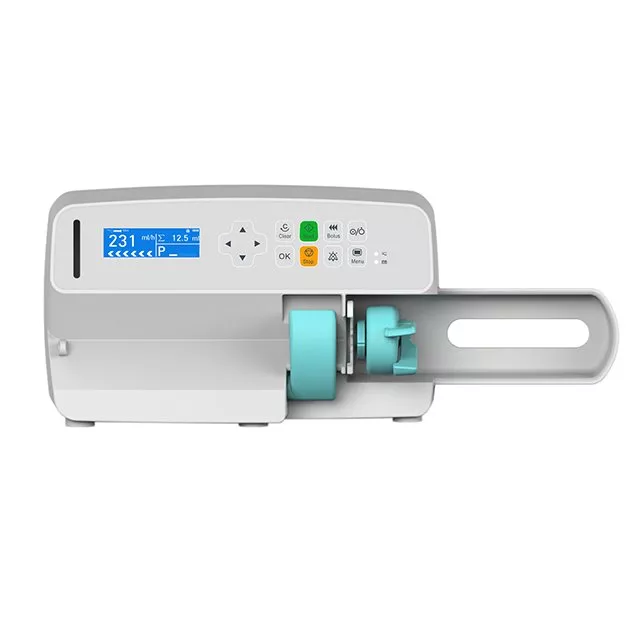

500I Syringe Pump

Specifications:

● Mechanism: Stepper motor

● Syringe type: 5,10,20,30,50/60ml

● Infusion Modes: Rate mode

● Flow rate range: 5ml:0.1~150ml/h;

10ml: 0.1~300ml/h;

20ml: 0.1~600ml/h;

30ml: 0.1~900ml/h;

50/60ml: 0.1~1500ml/h.

● VTBI: 0.1~999.9 ml, the increment is 0.1 ml;

1000-9999ml, increment is 1ml”

● Accumulated volume: 0.1-9999ml

● Increments: 0.1ml/h(0.1-999.9ml/h)

1ml/h(1000-1500ml/h)

● Accuracy (± %): ≤ ±2%

● KVO: 0.5ml/h

● Bolus rate: 0.1~1500ml/h

● Purge rate: 150-800ml/h

● Occlusion level: 3 levels

● Occlusion pressure range: Low: 300±125 mmHg (40kPa);

Medium: 525±125 mmHg (70kPa);

High: 900±180 mmHg (120 kPa).

● Screen: 2.5″ LCD monochrome screen, 132×32 Pixels

● Display info. : Delivery rate, current infusion, VTBI, total volume, syringe size, syringe brand, pressure limit,

battery capacity, drugs, remaining time, alarms

Functions:

● Change flow rate during infusion

● Front-panel lockout

● Standby

● Pause

● Silence

● Auto syringe brand recognition

Alarm

● Real-time alarm display

● Auto self-test system

● Infusion finish

● Infusion near end

● Syringes disengaged

● Occlusion

● Flow error

● Syringe unlocked

● System malfunction

● System abnormal

● Low battery

● Battery empty

● Reminder

● Standby end

● No AC Power

Interface

● Data port: RS232

● Nurse call jack

● DC input

Battery

● Battery type: Lithium

● Battery operating time: >6hrs @ 5ml/h

● Battery recharge time: ≤5 hrs
