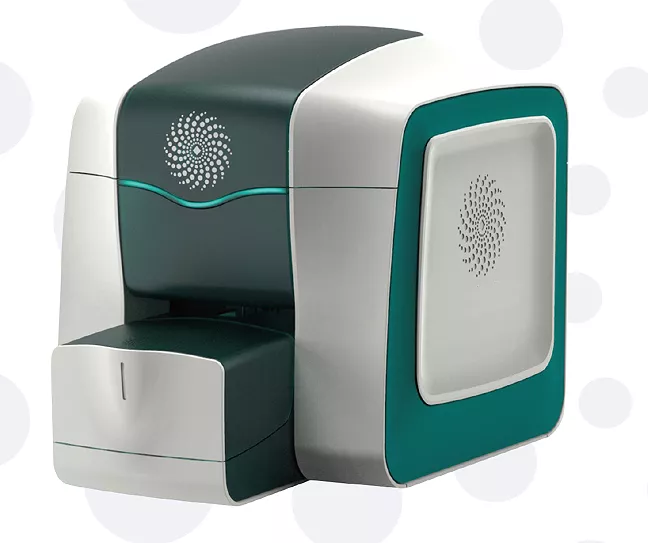

FC2040 Flow Cytometer

Absolute Cell Counting
Precision syringe volume control devoid of counting tubes or other reagents. Immune to computational error from minor pressure change or volume measurement deviation.

Auto Gain
Automatic PMT gains adjustment, the precision of fluorescence compensation down to 0.01% in a real-time manner.

Automatic Sample Load
The automatic Sample Loader in the standard configuration can hold 32 samples with precursive mixing against precipitation to break the throughput bottleneck.

Versatile Software
Application software for data collection, analysis, and report; process-oriented intuitive user interface in modular design; quick switch between multi- language packs; direct PDF report generation; broad spectrum for gate drawing methods on scatterplots.

Category Hematology Analyzer

Specifications
▅ Medical Laboratory Equipment Flow Cytometer CD4 Series Counter System

Feature	Performance
Resolution	FSC≤2.0%; FITC,PE≤2.0%; PerCP,PE-Cy7,APC,APC-Cy7≤4.0%
Fluorescence Sensitivity	FITC≤120 MESF, PE≤80 MESF
Dynamic Range	1.6×107
Contamination Carrying Rate	≤0.1%
Maximum Analysis Speed	50,000 Events/s
Min. Specimen Volume	100μL(test tube: φ12×75 mm)
Max. Particle Size	40μm
Absolute Count	Absolute Volume Method
Flow Rate	12μL/min, 33μL/min, 82μL/min, 124μL/min, 4 levels flow
Sample Capacity	32

▅ Test Items:

Laser	Filter	Fluorescein	FC1030	FC2040	FC2050	FC2060
Blue, 488 nm Solid 43mW	FL1 (530/30)	FITC	√	√	√	√
	FL2 (585/40)	PE	√	√	√	√
	FL3 (670LP)	PerCP	√	√	√	√
	FL5(785/60)	PE-CY7			√	√
Red, 638 nm Solid 55mW	FL4 (660/20)	APC		√	√	√
