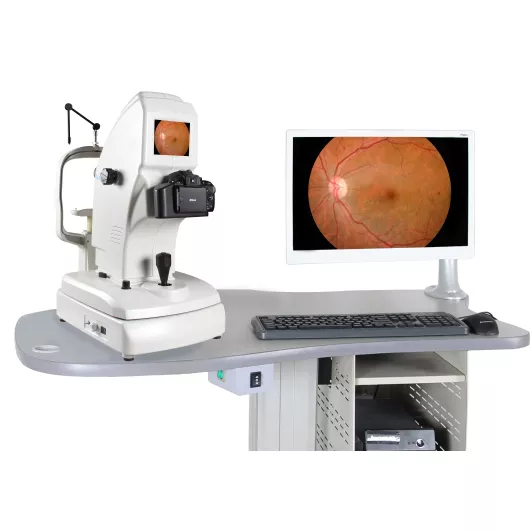

Fundus Camera /Retina Camera

Specifications

– Working Distance: The distance from the cornea is 40mm, Errors: ±2mm

– Field of Vision Scope: 45°

– The Size of the Outer Ring: φ7.4mm;

– The Size of the Inner Ring: φ4mm

– Filters: Stimulating Filter (red&blue);

– Depth of field contraction distance: ≥5mm

Seat Movement Scope

– The moving distance between the front and back: is 60mm;

– The moving distance between right and left: 120mm;

– The moving distance between up and down: is 30mm.

Function

– Non-mydriatic

– Auto detected the eye position
– Pupil size: 3mm

– Illumination source: infrared

– Auto /manual focus

– Auto-adjust flash intensity /illumination intensity according to patient pupil size

– Five internal fixation lamps/external fixation lamp

– Nine internal fixation: option

– Refractive compensation: +15D

– Image resolution: 16.2Mega with Nikon D5200

– Dicom 3.0 interface (optional)
