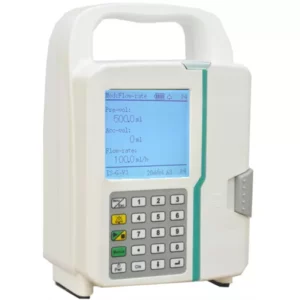

IP737 Infusion Pump

Features:

● Semi-squeeze low pulsation   uniform drops

● Semi-squeeze: can keep the elasticity of the tube and accuracy of infusion over a long period.

● Pulsation compensation: uniform drops, low pulsation, safer for patients.

● Multi-modes: bring flexible operations.

● Original technology: original pressure detection technology, guarantee an accurate and safer infusion.

● Historical records: can keep the latest 1000 records, easy to be browsed, and not- erasable.

Specifications:

● Pumping way: Semi-squeeze finger-type peristaltic pump

● Infusion sets: Special or quality PVC/TPE infusion sets with an external diameter of 3.4mm~4.5mm

● Infusion modes: Flow rate, Time-amount, Drop-rate, Body-weight

● Flow-rate mode: Flow-rate: 1.0～1200.0ml/h, 0.1ml/h step

● Time-amount mode: Time: 1s~99h59m59s,1s step

● Drop-rate mode: Drop-rate: 1~333 d/min, 1 d/min step

● Body-weight mode:

Dose: 0.1～999.9mg, 0.1mg step mg/kg/h: 0.01～999.99 mg/kg/h, 0.01mg/kg/h step

Body weight: 1～300kg, 1kg step

● Preset volume:0.1～9999.9ml, 0.1mlstep

● Cumulant:0～9999.9ml, reset only

● KVO function: KVO rate: 1.0～5.0ml/h, 0.1 ml/h step

● Bolus Function:

Bolus rate: 50.0～800.0 ml/h, 0.1 ml/h step

Bolus volume: 0.1～99.9 ml/h, 0.1ml step

● Infusion precision:  Better than ±5% (using a calibrated or a special infusion set)

● Alarm

Air in tube, 3 grades of sensitivity;

Bubble sensor fault;

Upper-end occlusion, -20～-60 kPa,8 grades of sensitivity;

Upper-end base-pressure fault;

Lower-end occlusion, 20～140 kPa,8 grades of sensitivity;

Lower-end base-pressure fault;

Pump rotation fault;

Inverse-infusion;

Abnormal door-opening;

Low battery power, battery fault;

Overtime pause;

Completed infusion;

AC power fault;

MCU fault, and stop the infusion.

● Date function

The memory of calibration: Records the calibration data of the tube automatically for application;

The memory of parameter: Records the latest infusion parameter for the next operation;

Historical records: records the latest 1000 infusion events. (what/when/why, flow rate, etc.)
