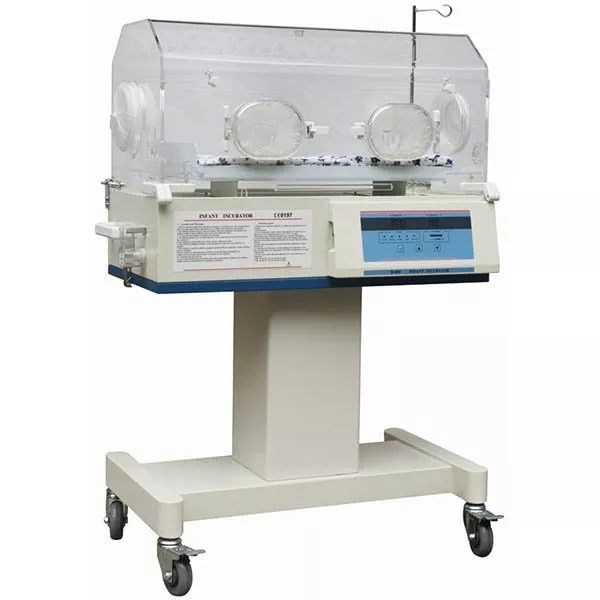

BI-3000/BI-1000/BI-800 Infant Incubator

Category Infant Incubator

Specifications

Model	BI-3000	BI-1000	BI-800
Canopy Specifications
Mattress (canopy)	450mm	450mm	450mm
Access Port	6 (2 Iris ports)	6 (2 Iris ports)	4 (2 Iris ports)
Self-sealing Tube Ports	4	4	2
Front Access Panel	826x310mm	826x310mm	826x310mm
Mattress Tray Size	630x360mm	630x360mm	630x360mm
Technical Specifications
Temperature Mode (Servo Controlled)	air, infant	air, infant	air
Air Temperature Adjustment Range	20°C~37°C, 37~39°C	20°C~37°C, 37~39°C	20°C~37°C
Infant Temperature Adjustment Range	30°C~37°C, 37~38°C	30°C~37°C, 37~38°C	N/A
Infant Sensor Accuracy	≤0.3°C	≤0.3°C	N/A
Relative Humidity Display Range	5%~99%	N/A	N/A
Temperature Fluctuation	≤0.5°C	≤0.5°C	≤0.5°C
Uniformity of Mattress Temperature	≤0.8°C	≤0.8°C	≤0.8°C
Time to Warm Up	≤30 min	≤30 min	≤30 min
Noise Level within Canopy	≤55dB	≤55dB	≤55dB
Alarms
Power Failure Alarm	Yes	Yes	Yes
Fan Failure Alarm	Yes	Yes	Yes
Sensor Failure Alarm	Yes	Yes	Yes
Air Temperature Deviation Alarm	±3.0°C	±3.0°C	±3.0°C
Infant Temperature Deviation Alarm	±1.0°C	±1.0°C	N/A
Air Temperature Exceeds set Limit Alarm	≤38.0°C; ≤40.0°C	≤38.0°C; 40.0°C	≤38.0°C
Infant Temperature Exceeds set Limit alarm	≤38.0°C; ≤39.0°C	≤38.0°C; 39.0°C	N/A
System Failure Alarm	Yes	Yes	N/A
Mute Alarm Function	Yes	Yes	N/A
Operational Environment
The temperature within the Operational Environment	+20°C~+30°C	+20°C~+30°C	+20°C~+30°C
Relative Humidity within the Operational Environment	5%~99%	5%~99%	5%~99%
The velocity of Air Flow within an Operational Environment	＜0.3m/s	＜0.3m/s	＜0.3m/s
Other Specifications
RS-232 connector	Yes	Yes	N/A
The tilt of Infant Bed (Adjustment Range)	±10° step-less	±10° step-less	N/A
Maximum Load of Mattress Tray	5kg	5kg	5kg
Maximum Load of IV Stand	2kg	2kg	2kg
Maximum Load of Cabinet	6kg	6kg	N/A
