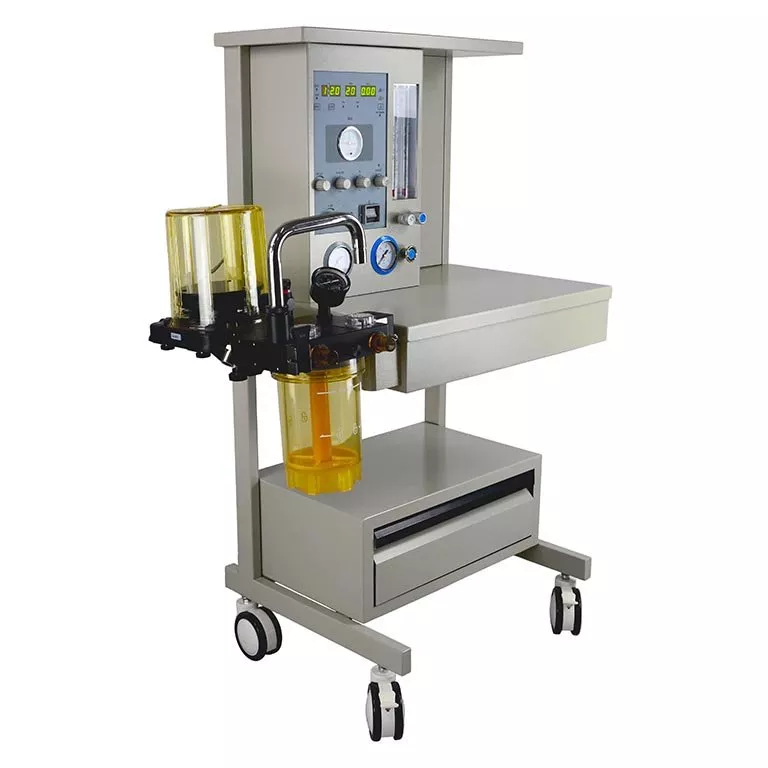

● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
Specifications
Display: LED
Flowmeter Range: O2: 0.1-10L/min N2O: 0.1-10L/min
Ventilation Mode: IPPV, SIPPV, MANUAL
Back-up Power Supply: At least 4 hours
Tidal Volume: Adjustable range: 50-1500ml / Display range: 0-2000ml
Respiratory Rate: 4-40bpm
Inspiratory/Expiratory (I:E) Ratio: 1:1.5-1:3.0
Inspiratory Pressure Trigger Range: -10-10cmH2O
Vaporizer Concentration Ranges: 0-5%
Vaporizer Slots: Single PA-80 type slot
● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressure-Volume and Flow-Volume, displayed waveforms can be cycled instantly with a touch of a button
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
