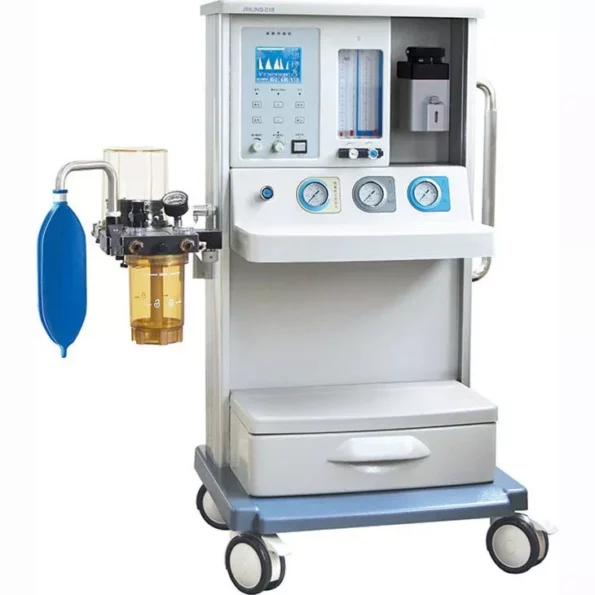

JINLING-01B Anesthesia Machine

Specifications

– Operating mode: pneumatically driven and electronically controlled; closed; semi-closed; semi-open.

– Anesthesia ventilator: built-in 5.4 inches TFT display, able to display Pressure-Time, Frequency-Time, and both waveforms simultaneously on the screen.

– Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high-temperature disinfection, easy to clean and disinfect.

– Power failure support functions: automatically converts to standby mode during AC power outages.

– Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor.

– High precision four-tube flowmeter: O2: 0.1 ~ 10 L/min, N2O: 0.1 ~ 10 L/min

– Ventilation modes: A/C, IPPV, SIPPV, manual

– Tidal volume: adjustable range: 50 ~ 1500 ml, display range: 0 ~ 2000 ml

– Ventilation frequency: 1 ~ 99 bpm

– I:E: 4:1 ~ 1:10 (capable of inverse ratio ventilation)

– Inspiratory trigger pressure: -10 ~ 10 cmH2O

– Sigh: 80 ~ 160 times adjustable

– Alarms: audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure, and other alarms, also feature an alarm query function.

– Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable.

– Vaporizer: imported tank components assembled; Enflurane, Isoflurane, and Sevoflurane (Halothane optional). Also possesses self-compensating functionality.

– Concentration range for vaporizer: 0 ~ 5%

– Optional: PA-80 type vaporizer (Economic model)

– Optional: two vaporizers, patient monitor (Advanced model)
