Specifications

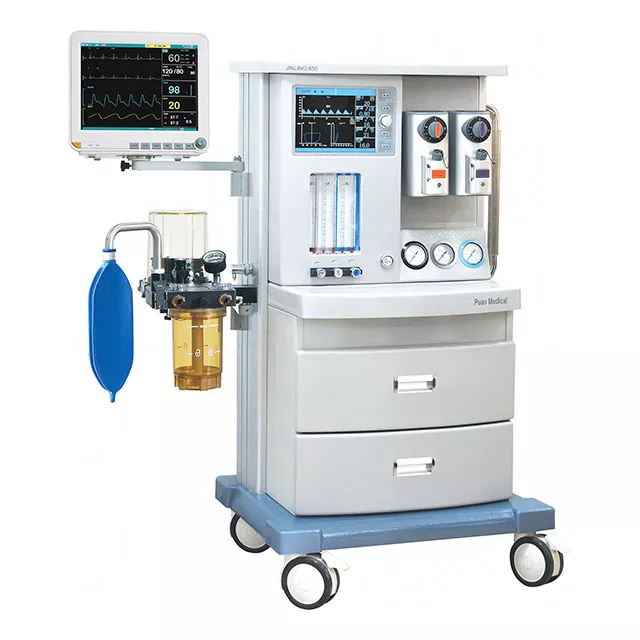

– Anesthesia ventilator: built-in 8.4-inch color TFT display, able to display Pressure-Time, Frequency-Time,
Pressure-Volume, Frequency-Volume, and any two waveforms simultaneously on the screen.
– High precision five-tube flowmeter: O2: 0.1 ~ 10 L/min, N2O: 0.1 ~ 10 L/min, Air: 0.1 ~ 10 L/min
– Ventilation modes: A/C, IPPV, SIPPV, VCV, IMV, SIMV, manual, Standby
– Sigh: 70 ~ 150 times adjustable
– Inhaled oxygen concentration monitor: 21 ~ 100％
– Alarms: audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia,
power failure, oxygen failure, and other alarms, also feature an alarm query function.
– Optional: 10.4-inch color TFT display
– Optional: Patient Monitor
● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressure-Volume and Flow-Volume, displayed waveforms can be cycled instantly with a touch of a button
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
