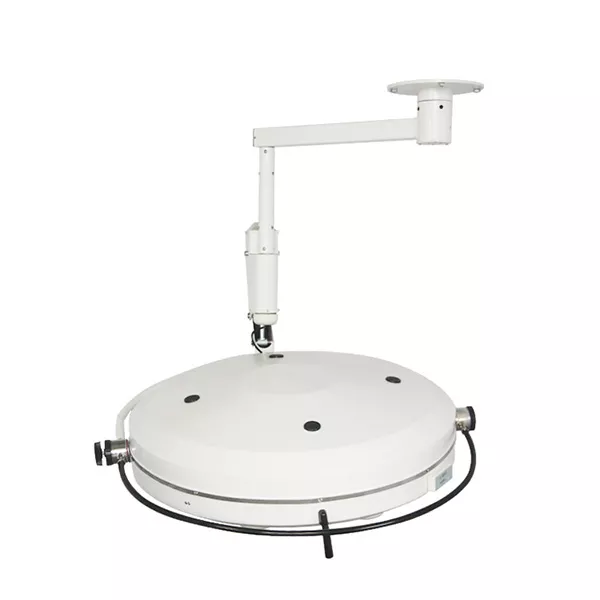

LED-9 Ceiling LED Surgical Lighting

Category Operating Lamp

Modern LED lighting technology

■ Traditional suspension

■ Variety of configurations: ceiling-mounted, wall-mounted and floor standing

■ A high-quality system to match your OR needs and your budget

The advanced LED technology in our light heads offer:

■ High intensity

■ Cool, bright white light

■ Accurate color rendition

■ Superior deep-cavity illumination

■ Excellent shadow control

■ Energy efficiency

Technical Parameter

Light intensity in Lux at 1 meter distance	90,000-150,000
Color Temperature (K)	4000±500
Color rendering index(Ra)	≥90
Focusable Light Field size (mm)	200±50
Working distance (mm)	60-140
Depth of Illuminance (mm)	≥800
Temperature increase in the head area	0.5℃
Radiance Energy (w/㎡）	600
Diameter of Lamp Head (mm)	1000
Light Source LED (pcs)	45
Life-span of the LEDs	50, 000 h
Electric & frequency (V& Hz)	100-240 & 50/60
