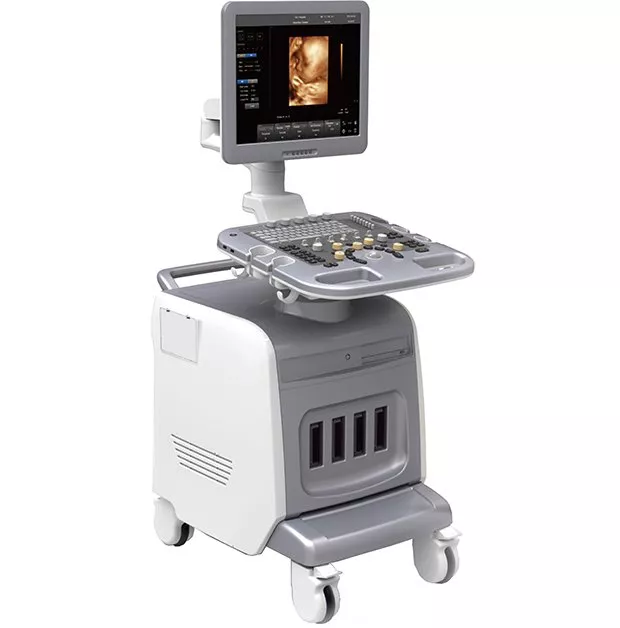

PT400 4D Color Doppler Ultrasound Diagnosis System

Specifications

Imaging Modes

● B, 2B, 4B, B/M, M, CFM, PW Mode, Power Doppler/Directional PD, Trapezoidal, Real-time 4D (Optional), Chroma B/PW, CW (Optional)

Transducers

● Convex transducer

● Linear transducer

● Trans-vaginal transducer

● Phased array transducer

● Micro-convex transducer

● 4D volume transducer

Measurement & Report Packages

● OB/GYN, Vascular, Urology, Small parts, Cardiac

Professional Clinical Applications

● Abdominal, Obstetrics, Gynecology, Cardiac, Vascular and Small parts, Pediatric, Urology, Musculoskeletal

Standard Configuration

● Main unit, 19″ LCD, 4 probe connectors, Hard disk (320GB), DVD-RW, 6 USB ports

Image Processing Technology

● THI

● Speckle Reduction Algorithm (SRA)

● Compound technology

● I-image: image optimization software

Optional

● 2.5MHz-5.3MHz Convex transducer

● 5.0MHz-10.0MHz Linear transducer

● 4.0MHz-10.7MHz Linear transducer (60mm)

● 4.0MHz-10.0MHz Trans-vaginal transducer

● 4.0MHz-10.7MHz Trans-vaginal transducer

● 2.5MHz-4.0MHz Phased array transducer

● 4.0MHz-10.7MHz Micro-Convex transducer

● 2.5MHz-6.4MHz Micro-Convex transducer (Adult Cardiac)

● 3.5MHz-8’0MHz Micro-Convex

● CW & ECG

● 4D package: including 2.5MHz-53MHz 4D volume probe, 4D software and 4D hardware module

● Video printer (SONY UP-X898MD), PC printer (HP Pro P1102W & HP Pro 200 M251n & Canon selphy cp910)

● DICOM 3.0 & Foot-switch

● I-Image: image optimization software

● Biopsy Kit: for convex, linear, TV probe● 7.5MHz linear transducer

● DICOM 3.0

● Trolley

● Video printer

● Laser printers
